Dew Orbit StratoScape
Orb

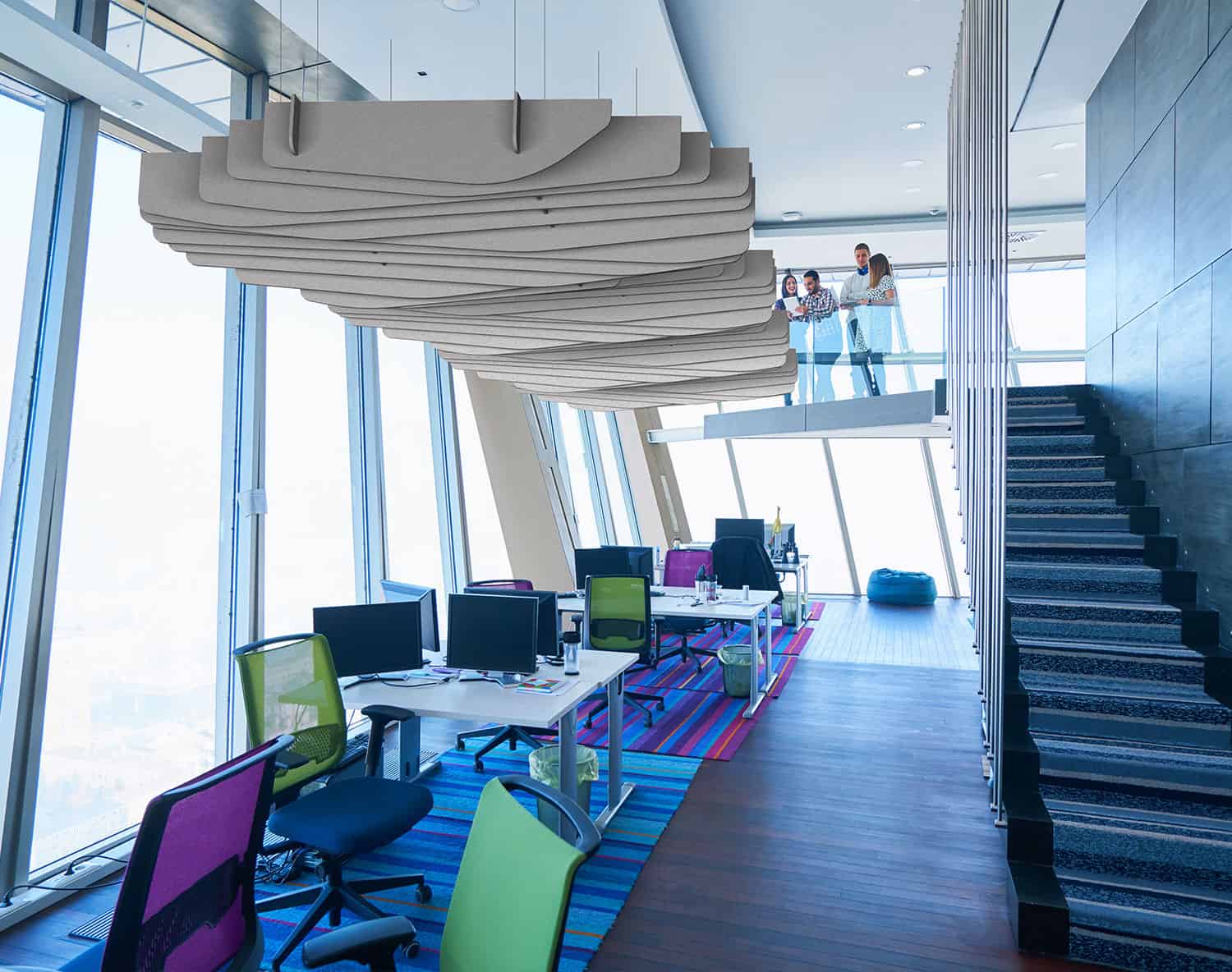

Embrace the allure of Orb, a suspended acoustic ceiling raft that effectively reduces reverberation within spaces to create a captivating visual ambiance. Thanks to its modularity, architects and designers can easily integrate these suspended clouds into any environment.

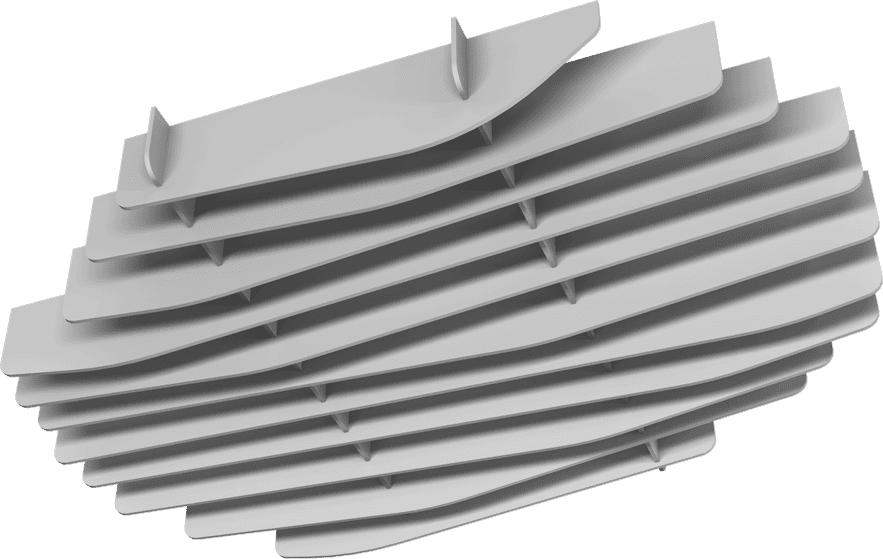

Single Module

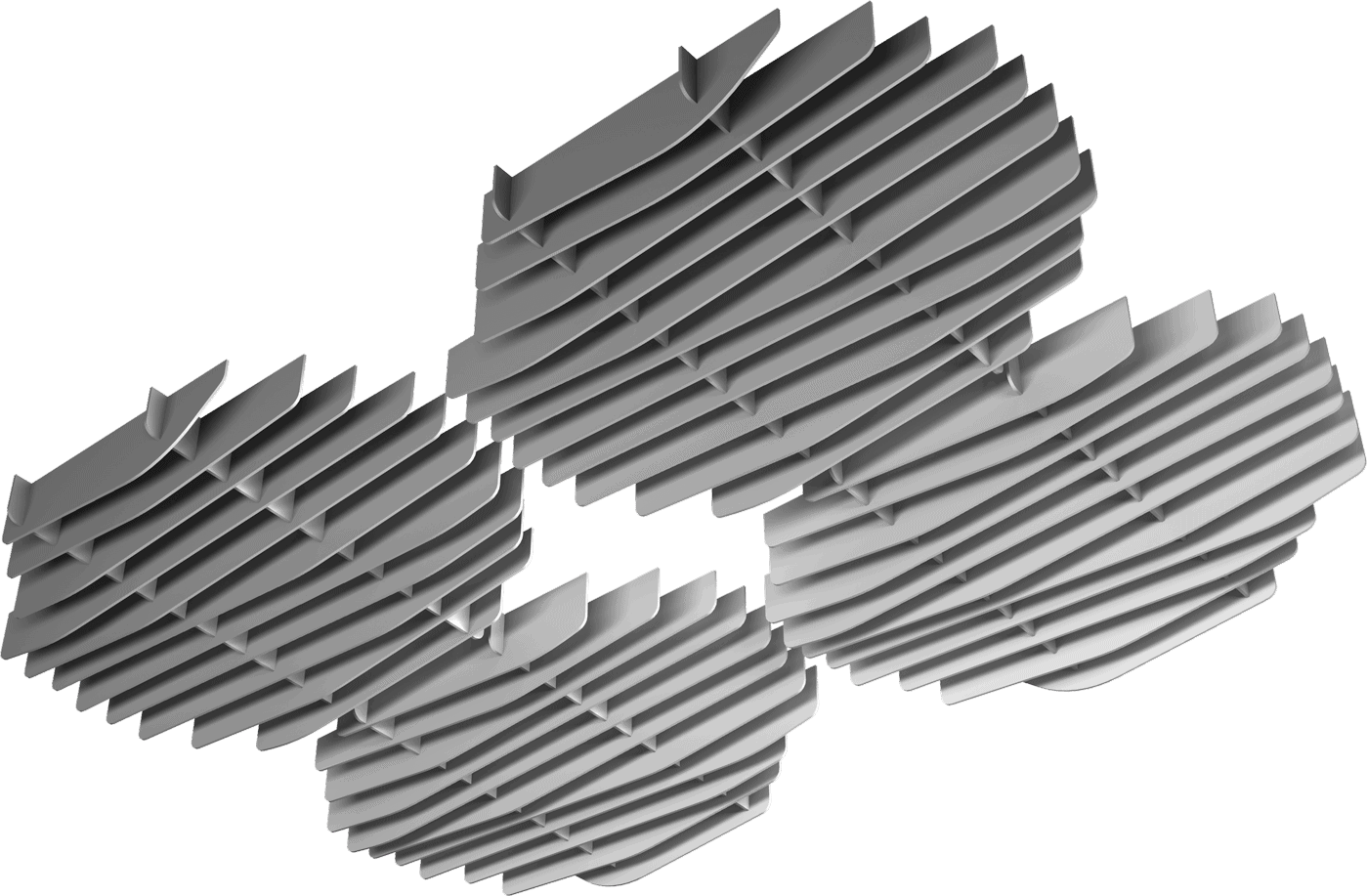

Multiple Modules
Available UK & Europe
Colours
Experience the fusion of aesthetics and functionality with our diverse color range for acoustic products. From serene neutrals to vibrant hues, our palette offers endless possibilities to personalize your space. Unleash creativity and enhance sound quality effortlessly.
Product
Dimensions
By understanding the StratoScape Orb dimensions you can work out how many modules you will need for your available space. Orb can be used as a singular feature or multiple modules joined together

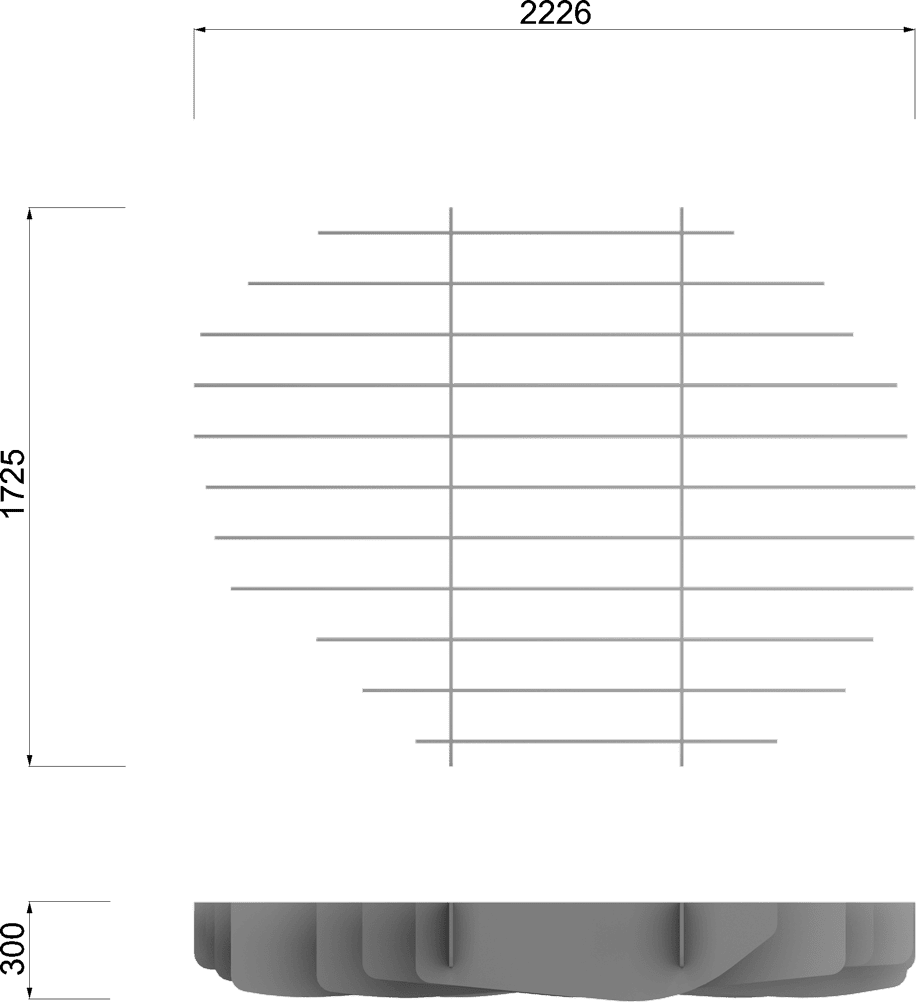

Orb Dimensions
2226mm L x 1725mm W
300mm Depth
Components
11 x decorative blades
2 x lateral struts
4 x fixings
Single Module

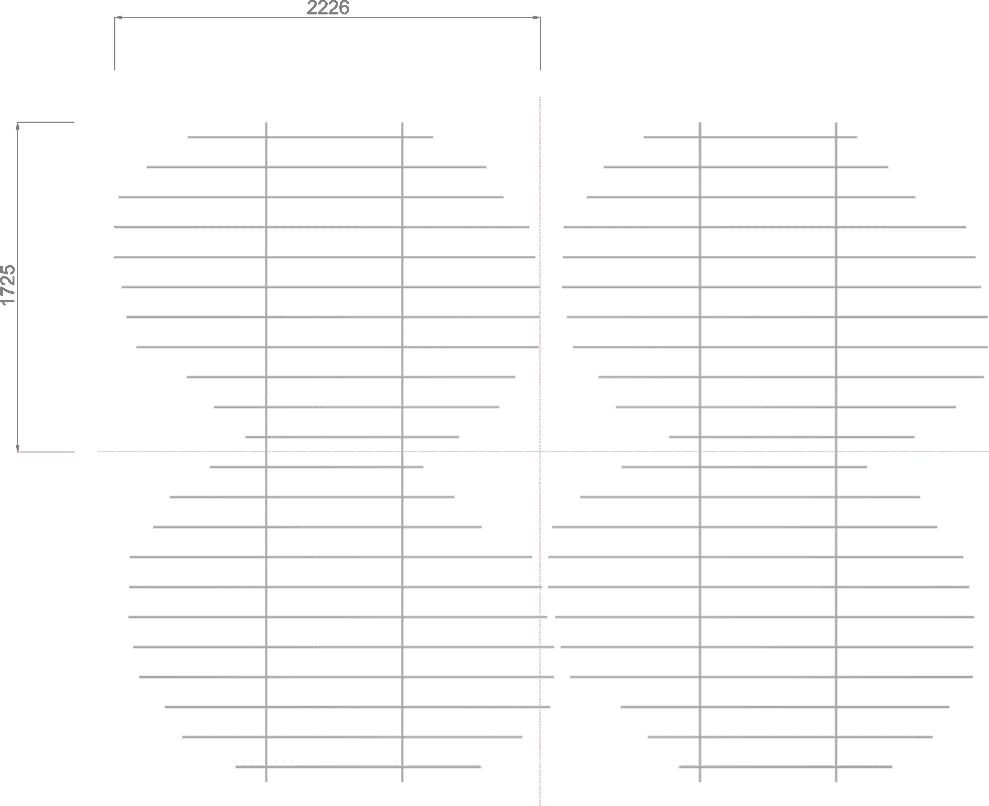

Multiple Modules
Simple
Assembly
Acoustic
Features
Acoustic Performance
Welcome to a world where acoustic performance meets the ceiling. Our ceiling acoustic solutions redefine the way you experience sound in interior spaces. Our products deliver exceptional sound absorption and diffusion properties, transforming any room into an acoustically optimized environment.
Modular - Build them up
Embrace the power of modularity with our exceptional acoustic products. Designed with a modular approach, these solutions offer unparalleled customization and adaptability to suit any space. Experience the freedom to shape your acoustic environment with ease and precision.
Easy to Assemble
Simplify your acoustic journey with our products that are designed for effortless assembly. Say goodbye to complex installation processes and hello to a seamless experience. Our acoustic solutions are thoughtfully engineered with user-friendly features, ensuring hassle-free assembly.
Product
Downloads
Product
Specifications
Material Specifications
Composition: 100% Polyester Fibre
Recycled content: Minimum 45% PET plastics
Recyclability: 100% recyclable
Acoustics
Acoustic NRC Rating: E-87 NRC 0.75 (12mm material)
Acoustic NRC Rating: E-124 NRC 0.95 (24mm material)
Calculated to BS EN ISO 11654:1997
VOC Emissions
VOC concentration: Low VOC product.
Product manufactured from 100% polyester fibres and no chemicals are used in manufacture of the material.
Fire Ratings
PET Material Fire Ratings
12mm - EN13501-1:2018: B-s1, d0
24mm - EN13501-1:2018: B-s1, d0
How to Order
1
Select a style
Discover the ideal style for your acoustic ceiling and bring your vision to life. With a range of captivating designs to choose from you can create a truly customized and visually stunning ceiling solution.
2
Select number of modules
Determine the ideal number of modular ceiling rafts for your project. Consider the dimensions, layout, and desired acoustic impact to determine the perfect quantity of rafts that will achieve your goals.
3
Select a colour
Immerse yourself in the world of color and select the perfect hue for your modular ceiling rafts. From calming neutrals to vibrant tones, our extensive color palette offers endless possibilities to enhance the visual appeal of your space.
